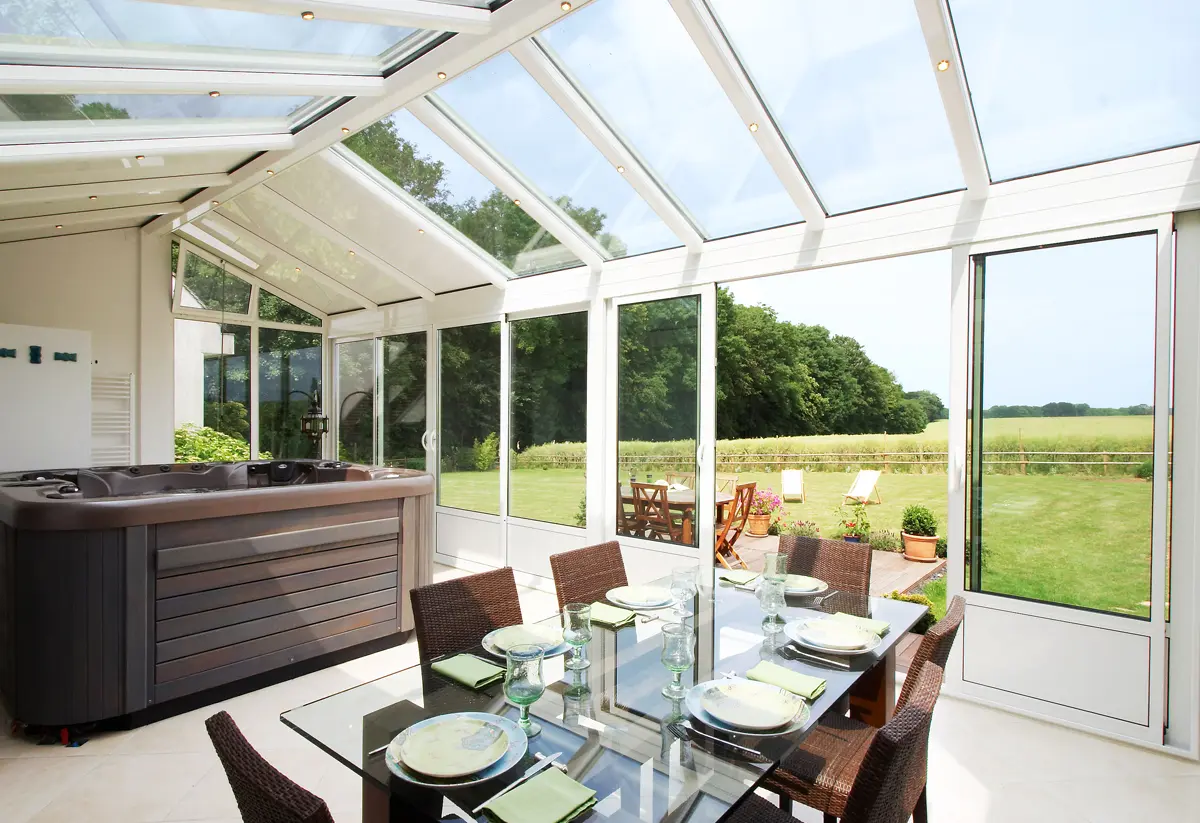

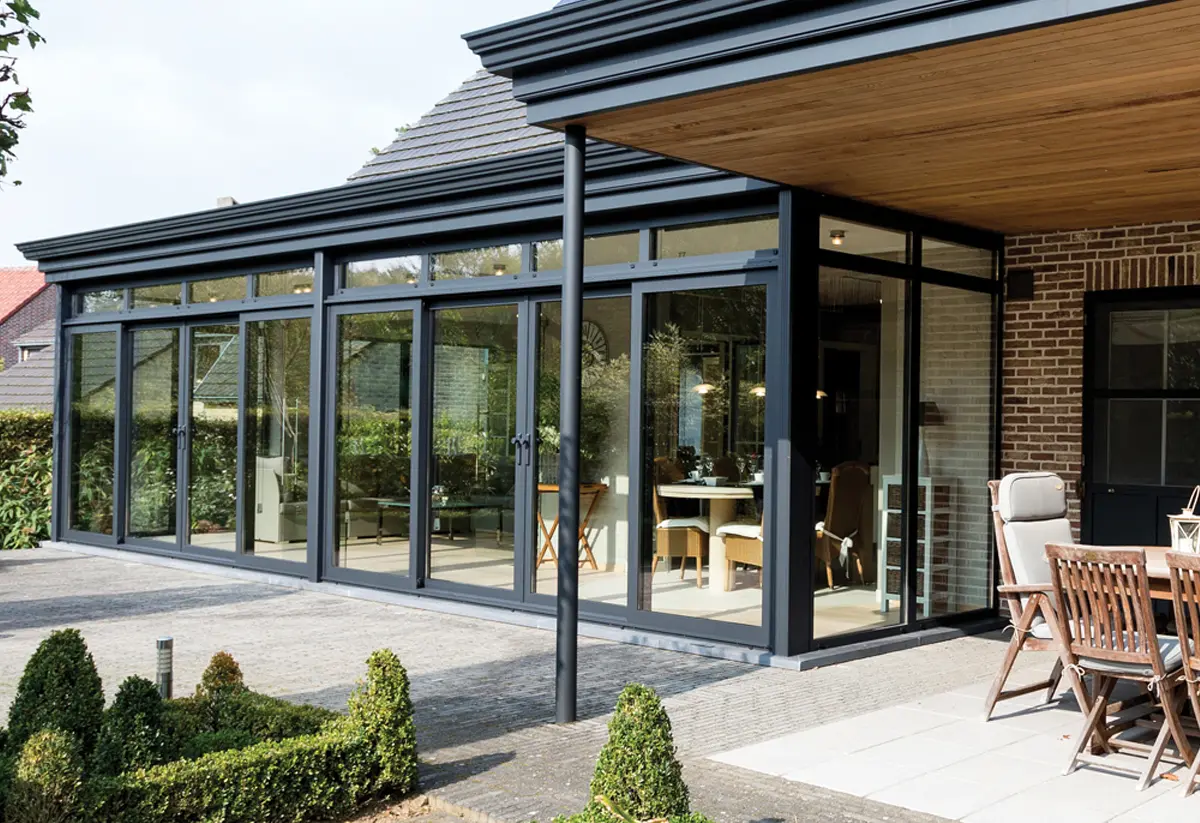

Reinforced conservatory roof system with thermal breaks

Applications

Roof lights - domes - pyramid roofs

Characteristics

• High resistance to bending, reinforced inertia with double internal reinforcements available in aluminium or steel.
• Gutter welded at an angle or straight for optimal support
• Angle bracket for mounting of gutter and extension
• Frame and gutter mounted with aluminium connection profile
• New mounting spigot for easy assembly
• Three models available: 1 Victorian + 2 straight
• Improved intertia of the gutter on large dimensions
• Improvement of the thermal bridge of the roof truss mounted over the double gutter connection
• Double gutter for fixing all window systems
• Available lengths of 4.7 m and 7 m for optimal profile cuts
• Variable roof pitch from 5 to 45 degrees
• Grid to avoid leaves for easy maintenance
• Self-supporting roof panel and screw fastening in the gutter style
• Possibility of tucking away cables for lighting
• Glazing:
• • with cap: 10 mm - 105 mm
  • with rubber: polycarbonate panels (16 to 32 mm)
  • with glazing bead: 10 mm - 85 mm
